Key Features
- Improve your recordings today
- Supplies an additional 25dB of boost
- Excellent for dynamic, ribbon and condenser microphones
- Rugged build makes it suitable for live performance as well as recording

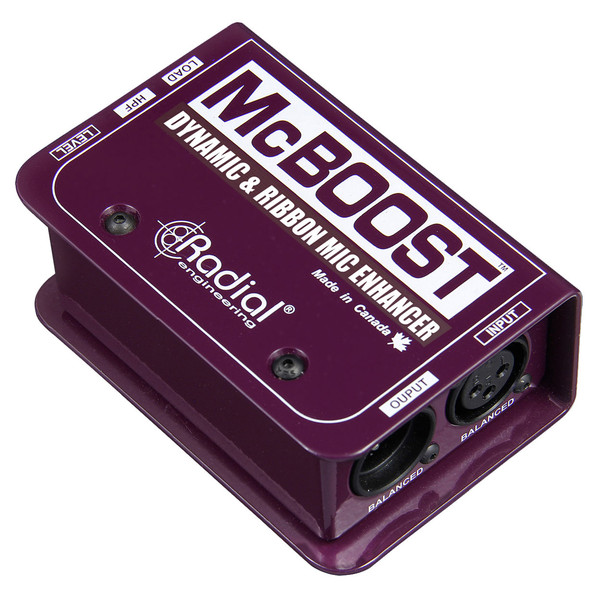

Radial McBoost Microphone Signal Booster Overview
Make your recordings hiss free with the Radial McBoost Microphone Signal Booster. When you're recording with ribbon or dynamic microphones that produce low output, you'll find yourself needing a great deal of gain to achieve usable results. Alternatively, if you're using a condenser to record delicate parts and need to crank your input to 10, then this can also introduce noise that detracts from your recordings. The McBoost makes this issue a thing of the past. The Signal Booster aims to provide you with an additional 25dB of volume via the variable front-panel level control. With an all-steel construction, the McBoost is just as comfortable on-the-road as it is in the studio. Improve the quality of your recordings today!
Product Ref: 71932
Full Description
View Full DescriptionClass-A signal booster
The 100 discrete design of the McBoost makes it one of the best in its class, featuring a class-A circuit for optimal audio quality and minimal distortion. The McBoost was designed to elivate the signal level of a low output microphone so it performs better within a mixing console. All you have to do is connect the McBoost between the mic and preamp and you're good to go. The McBoost is also highy durable thanks to Radial's trademark all-steel construction, featuring book ends that protect the switches and controls.
Premium-quality components
As well as the class-A circuitry, the McBoost also features a slew of components and design aspects that result in a high-performance signal boosting unit. The internal section of the unit features hand matched transistors for exceptional performance from the dual FET class-a circuit. This produces up to 25dB of boost which can be changed via the front-panel level control. There is also a 3-position high-pass filter that eliminates excessive rumble and proximity build-ups. Additionally the McBoost features a impedance selector that has 3 settings to provide optimal load on the microphone for increased accuracy.
Features
- Boosts low-output microphones for use with mixing consoles
- Dual FET class-a circuit
- Provides up to 25 dB of controllable boost
- Powered by standard 48V Phantom Power
- 3-position high-pass filter
- 3-position impedance selector
- Connections by standard XLRs
- Perfect for ribbon microphones
- Highly-durable all-steel construction
Specifications
- Audio circuit type: Class-A Differential DC Coupled FET
- Frequency response: 7Hz to 30kHz
- Dynamic range: 116dB
- Gain: +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain
- Clip Level: +16dBu (output)
- Total harmonic distortion: Less than 0.006%
- Intermodulation Distortion: Less than 0.01%
- Phase Deviation: Less than 10°
- Input Impedance: 600ohm / 2.7kohm / 30kohm
- Output Impedance: 220ohm
- Common Mode Rejection Ratio: Greater than 50dB
- Equivalent Input Noise: -125dBu
- Noise: -100dBu / -110dBu
- Product Code: R800-8016-00
