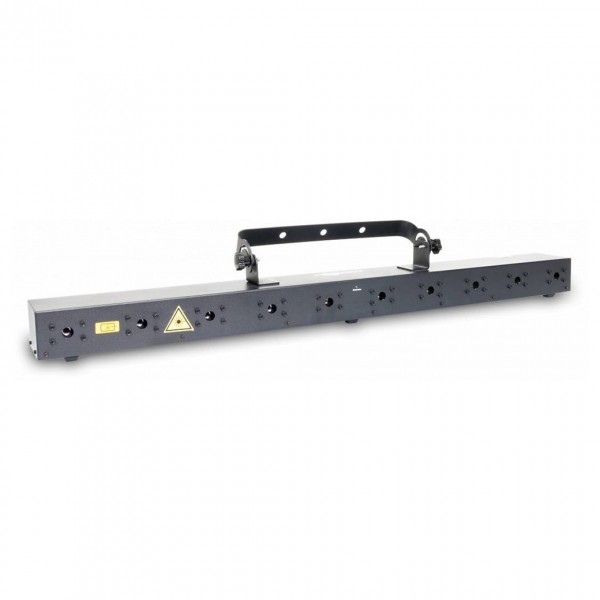

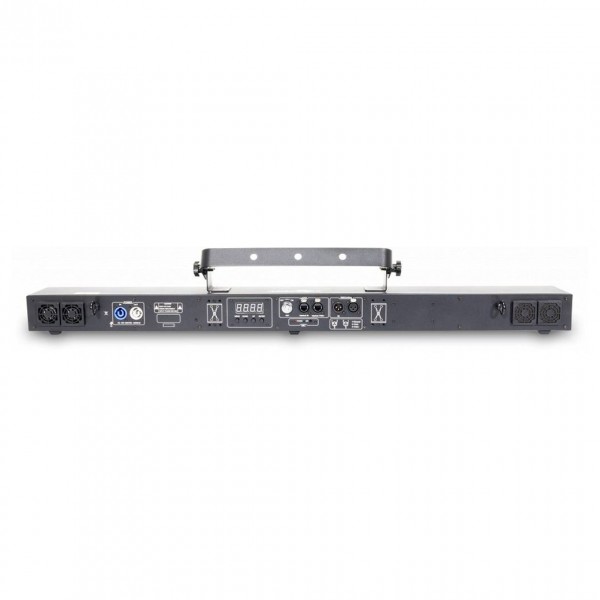

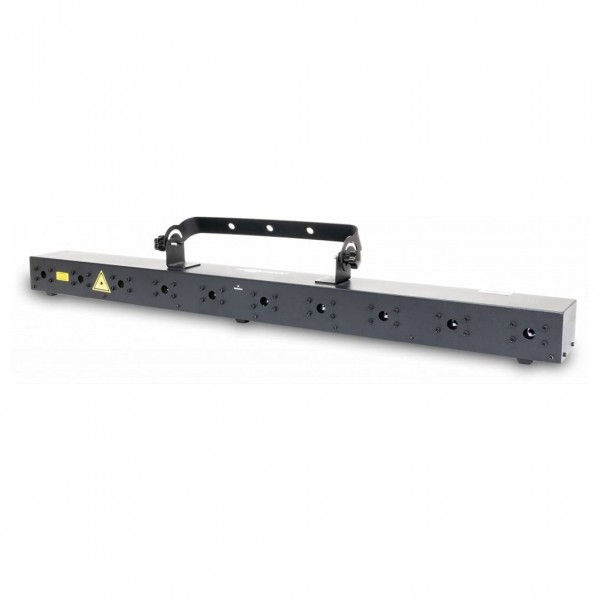

Laserworld BeamBar 10G MK3

Full Description

View Full Description

Stunning laser beam effects

The Laserworld BeamBar 10G MK3 is designed to create captivating laser beam effects that are perfect for enhancing any stage or event. Equipped with 10 green diode lasers, each delivering 75mW of power, this system generates extra-bright beams that cut through the air with precision. The lasers can be configured to produce a variety of effects, from sweeping fans to intricate chaser patterns, making it a versatile tool for lighting designers aiming to impress their audience.

Precision alignment for perfect effects

One of the standout features of the BeamBar 10G MK3 is the ability to individually align each laser beam using the accessible 4-point alignment system on the front plate. This ensures that each beam is perfectly positioned without the need to open the housing, making setup quick and straightforward. Whether you’re creating complex patterns or simple beam effects, this precision alignment guarantees that your light show will look exactly as you envisioned.

Customisable control with DMX

The BeamBar 10G MK3 offers extensive control options through its 13 DMX channels, allowing each of the 10 laser sources to be programmed independently. This level of control is ideal for creating detailed light shows with synchronised chases and effects. The laser also supports automatic and sound-active modes for easier operation when full DMX control isn’t required. Additionally, the master-slave mode enables multiple units to work in harmony, producing consistent effects across large setups.

Smooth transitions with analog modulation

Thanks to analog modulation, the BeamBar 10G MK3 offers smooth and subtle colour transitions, enhancing the visual impact of your light show. This feature is particularly valuable for creating a broader range of colour hues and more nuanced fading effects, making your lighting design more dynamic and engaging. The combination of bright output and refined colour control makes the BeamBar 10G MK3 a powerful addition to any professional lighting rig.

Features

• 10-head green laser beam bar
• 750 mW of total output power for sharp, bright lasers
• 10 extremely bright green diodes
• Easily align lasers from front plate for consistent positioning
• Analog modulation for smooth brightness control
• Programmable via DMX with easy integration into wider control setups
• Automatic, standalone and master-slave control modes allow wide range of operation

Specifications

• Product Code: BEAMBAR 10G MK3
• Guaranteed Power At Aperture: 750 mW
• Green Power: 10 x 75 mW/520 nm
• Beam Specifications: ca. 3.0 mm/1.1 mrad
• Laser Source: Diode
• Laser Class: 3B
• Operation Modes: DMX, Standalone, Sound-to-Light, Master-Slave
• Accessories: Interlock connector, manual, key
• IP Rating: IP4X
• Power Supply: 100 V - 250 V AC, 50/60 Hz
• Power Consumption: 50 W
• Dimensions: 1000 x 160 x 80 mm
• Weight: 9.0 kg

Working with Lasers

WARNING - The light source emitted from this product can potentially cause eye injury if not set up and used properly. This product is designed to be used by trained professionals. Do not point this product directly towards persons or audiences. The legal requirements for using laser entertainment products varies from country to country, and the user is responsible for the legal requirements at the location of use.
