Key Features
- Compact and unobtrusive transmitter with a large operating range of up to 400m
- Capable of transmitting up to 512 DMX channels from a single transmitter
- GFSK modulation with 78 channels for interference-free 2.4GHz operation
- Operate up to six transmitters simultaneously for control of up to 3072 channels
- Comes complete with a compatible power supply for plug-and-play operation

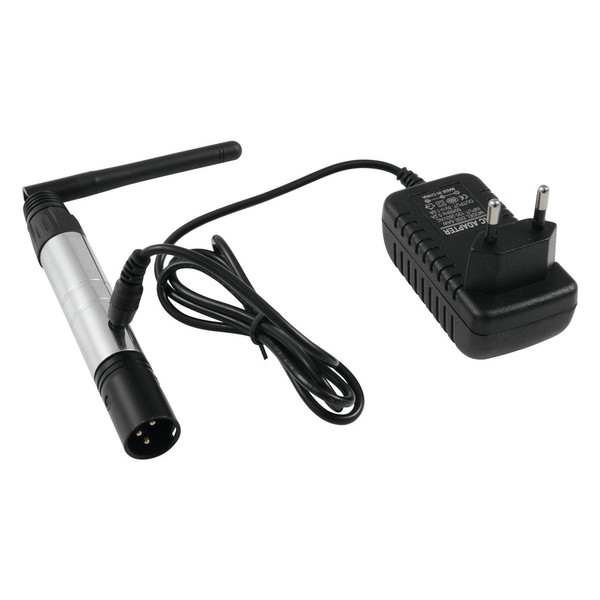

Eurolite QuickDMX Wireless DMX Transmitter Overview
Clean and reliable DMX transmission. The Eurolite QuickDMX Wireless DMX Transmitter allows you to eliminate extensive cabling in your lighting installations. Capable of transmitting up to 512 DMX channels from a single transmitter, this compact device is easy to setup and operate. A single button allows you to connect/disconnect your QuickDMX receivers with ease. Plus, with GFSK modulation with 78 channels, you can experience interference-free operation in the 2.4GHz digital wireless frequency band.
You can operate up to six transmitters simultaneously, giving you the potential to control up to 3072 DMX channels at the same time. A large line-of-sight operating range of up to 400-metres lets you make full use of your installation in venues of all sizes. The transmitter is capable of controlling up 512 receivers, and is powered by the included power supply.
Please note: The Eurolite QuickDMX Wireless DMX Receiver does not come with the Transmitter and is sold separately
Product Ref: 129394
Full Description
View Full DescriptionFeatures
- Compact and unobtrusive wireless DMX transmitter
- Capable of the transmission of up to 512 DMX channels
- User-friendly 3-pin male DMX plug with a swivel antenna
- Eliminates extensive cabling between your DMX controller and lighting units
- Perfect for use in lighting installations
- GFSK modulation with 78 channels for interference-free operation alongside other QuickDMX transmitters and other 2.4GHz wireless devices
- Large operating range of up to 400-metres (within line-of-sight)
- Simultaneous operation of up to six transmitters for control of up to 3072 DMX channels
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug and play operation for quick and easy setup
- Single operating button for connecting and disconnecting QuickDMX receivers
- LED indicators for functions
- Powered via the included PSU
Specifications
- Carrier Frequency: 2.4GHz ISM band, 78 channels
- Modulation: GFSK
- Coverage: 400m (line-of-sight)
- Parallel Operation: Max. 6 transmitters
- DMX Connector: 3-pin male
- DMX Control Channels: 512
- IP Classification: IP 20
- Colour: Silver
- Power Supply: 100-240V AC, 50/60Hz (via included power unit)
- Diameter: 18mm
- Length: 212mm (with antenna)
- Weight: 0.08kg
- Product Code: 70064700
