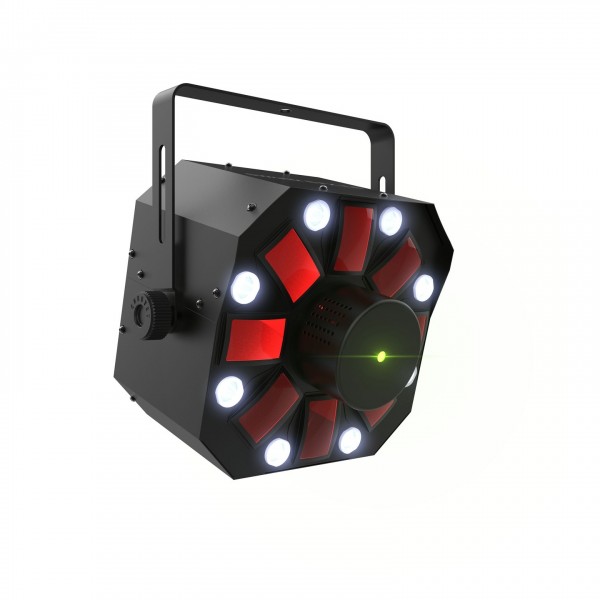

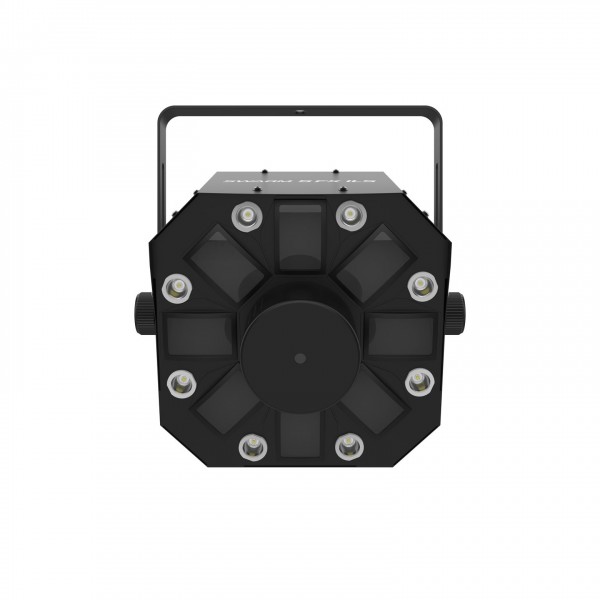

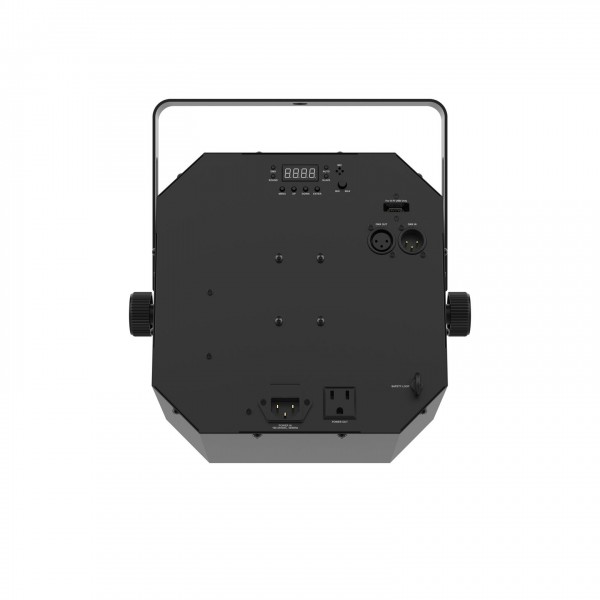

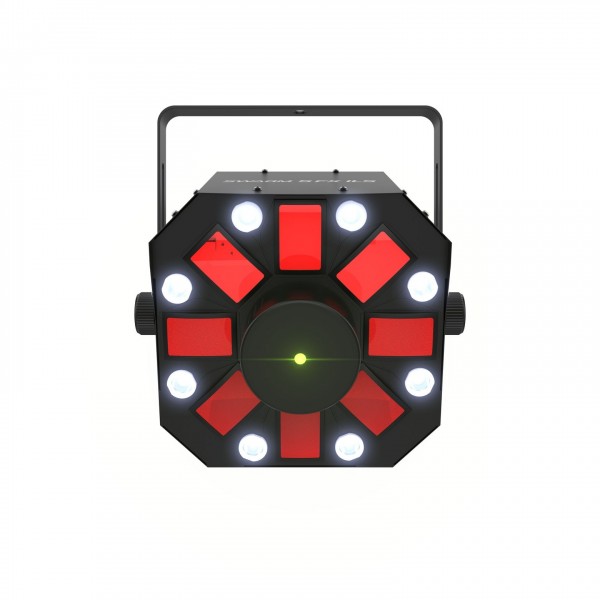

Chauvet DJ Swarm 5 FX ILS Lighting Effect

Full Description

View Full Description

New Instant Light Shows (ILS)

DMX is daunting, but Chauvet DJ’s Instant Light Shows (ILS) isn’t. Using the new GigBAR Move + ILS or ILS Command as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.

Any ILS fixture can slave to the GigBAR Move + ILS or be controlled by the new ILS Command. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.

Please note: ILS functionality requires either the GigBAR Move + ILS or ILS Command (not included)

Features

• Compatible with other ILS products for seamless system integration
• RGBAW rotating derby, RG laser, and white strobe for 3-in-1 LED action
• Compatible with D-Fi USB for wireless control via Master/Slave or DMX
• Thousands of red and green laser beams projected via the laser
• Allows for separate colour and program control
• Automated, sound activated, Master/Slave and DMX modes
• Power link units for a more efficient setup

Specifications

• DMX Channels: 9
• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
• Light Source (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
• Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 20 Hz
• Beam Angle (strobe): 17°
• Field Angle (strobe): 35°
• Coverage Angle (laser): 100°
• Coverage Angle (Swarm): 65°
• Illuminance (strobe): 823 lux @ 2 m
• Power Linking: 15 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
• Weight: 9.8 lb (4.5 kg)
• Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
• Approvals: CE, FDA, RoHS, UKCA

Working with Lasers

WARNING - The light source emitted from this product can potentially cause eye injury if not set up and used properly. This product is designed to be used by trained professionals. Do not point this product directly towards persons or audiences. The legal requirements for using laser entertainment products varies from country to country, and the user is responsible for the legal requirements at the location of use.
