Key Features
- Shifts Frequency Spectrum of a Signal
- Shift Linearly or Exponentially
- Create a Range of Unusual & Interesting Effects
- Use Manual or Voltage Controls
- Shifted Signals are Available Simultaneously & Separately

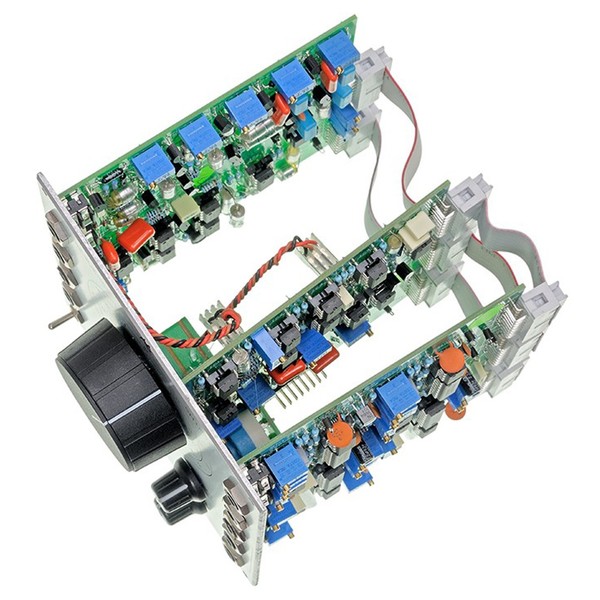

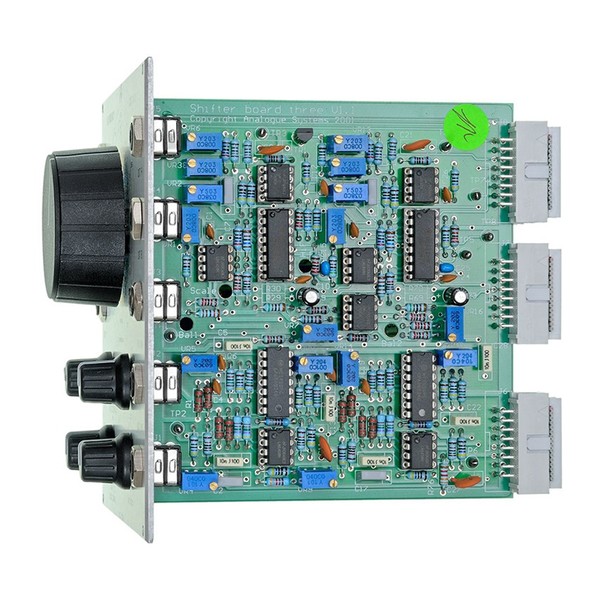

DISC Analogue Systems RS-240 Bode Frequency Shifter Overview
The Analogue Systems RS-240 Bode Frequency Shifter is a module that allows you to shift the frequency linearly and exponentially within a number of ranges to create a range of conventional and less conventional pitch-shifting effects. The RS-240 allows you to use manual or voltage controls independently or together to create the desired effects. The RS-240 Bode Frequency Shifter offers a large pitch control knob to control the amount of frequency shifting, allowing you to accurately dial in the amount needed.
Product Ref: 95291
Full Description
View Full DescriptionFrequency Shifter
The Analogue Systems RS-240 is a module that is capable of shifting the spectrum of a signal by a fixed amount. The widest amount shifts the signal by approximately ±5kHz at its maximum settings. Upwardly shifted and downwardly shifted signals are available simultaneously, both as independent signals, and as a user-defined mix of the 2. The large pitch control knob and scale selector determines the maximum amount of frequency shifting. You can choose to select linear or exponential shifting depending on the sound you want. Additionally, the module features 3 CV inputs that allow you to control the amount of pitch shift with external voltage sources.
Create Interesting Pith-Shifting Effects
The RS-240 provides a clear, high-quality sound. It is a module that allows you to create a range of conventional and less conventional pitch shifting effects. You can use the module on any sound source, but it sounds great on synth, lead, and bass sounds. Using the large pitch control knob, you can adjust the amount to taste.
Features
- Shift the frequency spectrum of a signal by a fixed amount
- Allows you to shift frequency linearly within a number of ranges, widest of which shifts signal by approx. ±5kHz
- Can use manual or voltage controls (or both together) to achieve desired effects
- Create a range of unusual and interesting effects
- Upwardly shifted and downwardly shifted signals are available simultaneously, both as independent signals, and as a user-defined mix of the 2
- Exponential frequency shifting
- CV inputs for controlling amount of pitch shift with external voltage sources
- Large pitch control knob
- Scale selector
- OUT A (carries the downward shifted signal)
- OUT B (carries the upward shifted signal)
- MIX OUT (x3) (carries both of the signals produced by the RS-240)
- Squelch (when input signal drops below threshold, a noise gate cuts off the output, thus minimising unwanted noise and artifacts generated from background noise)
Specifications
- Size: 24HP
- Depth: 12mm
- Power: 70mA
