Key Features
- Compact single channel dimmer for DMX control
- Three control modes: stand-alone, remote and DMX
- Easy to rig to your lighting set up

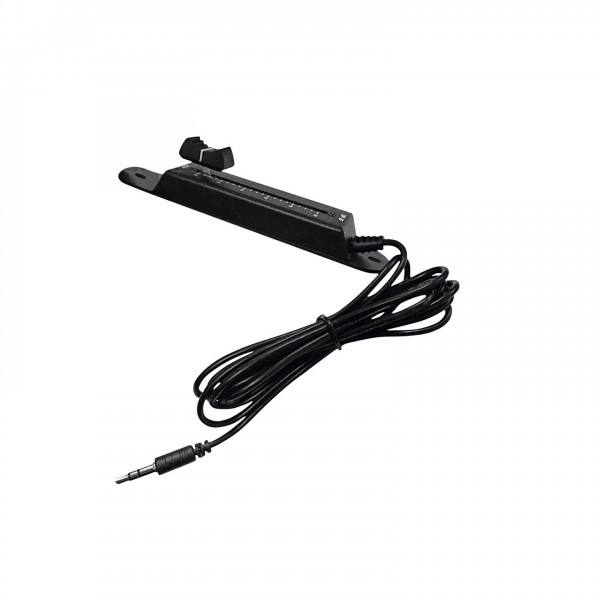

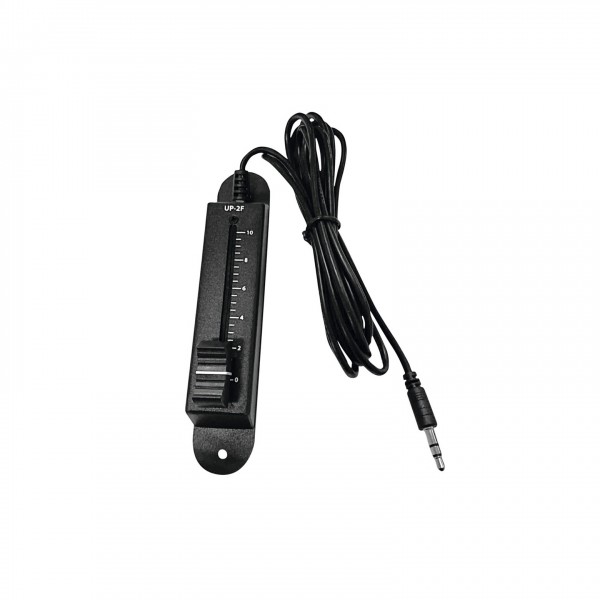

- Included wired remote has a mountable fader

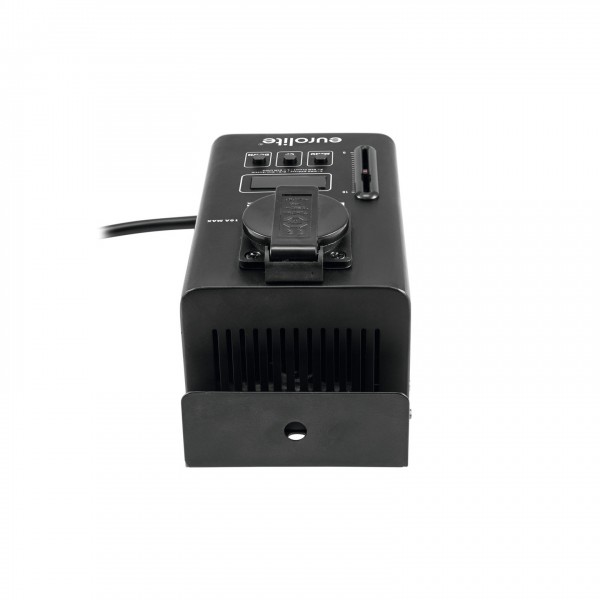

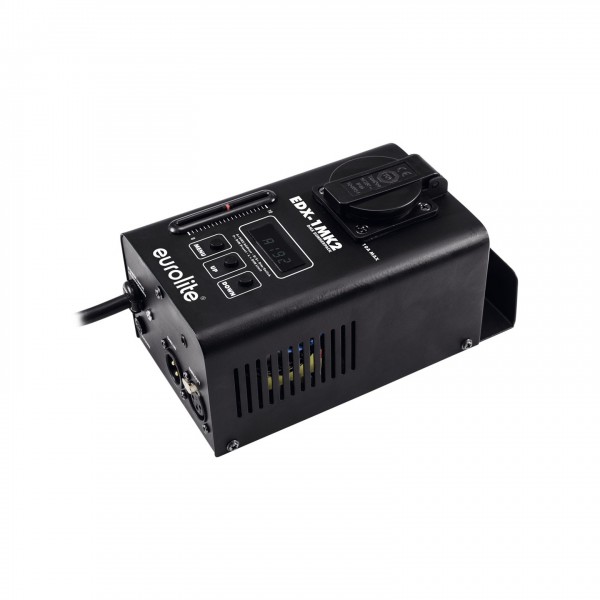

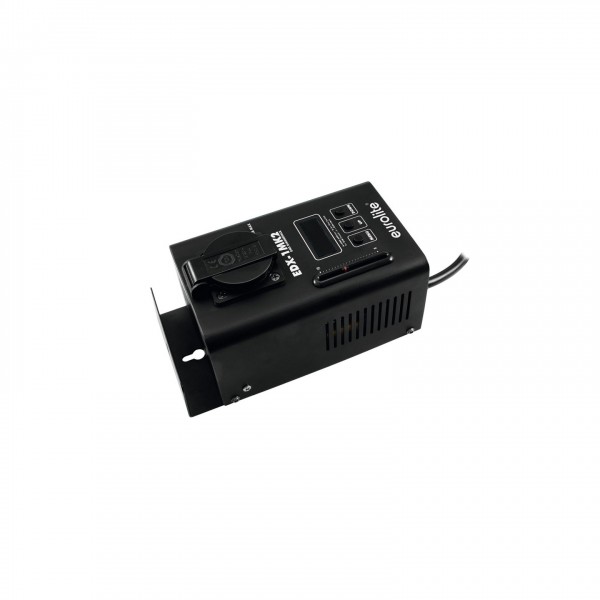

Eurolite EDX-1 Mk2 1 Channel DMX Dimmer Overview
The Eurolite EDX-1 Mk2 1 Channel DMX Dimmer provides compact functionality for your lighting rig. It's small size for operating one dimming channel is ideal specific use cases, such as control of a single light that is hard to reach. Or, if you need an extension for a dimmer pack which is not quite big enough, the EDX-1 will do the job.
There are three different control modes to choose from: stand-alone, DMX and wired remote (which is included). In addition you can change between dimming and switch pack operating modes. In fact the EDX-1 more than makes up for its size with the amount of control it enables over a single light fixture.
Product Ref: 171936
Full Description
View Full DescriptionFeatures
- Use in either dimmer or switch operating modes
- Three control modes available: DMX, wired remote and stand-alone
- Compact size makes it ideal for specific lights in awkward positions
- Can be installed on the wall, ceiling or as part of a trussing rig
- Easy to change settings with LED display, and to configure DMX addressing

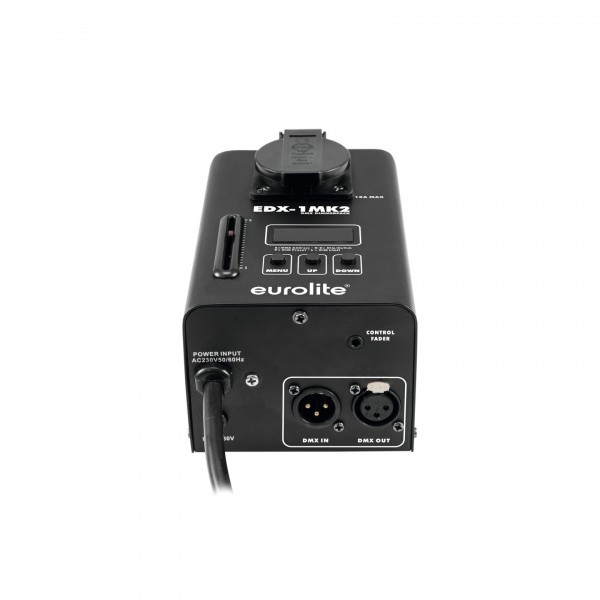

- One channel operation with 3-pin XLR input and output
Specifications
- Power Supply: 230V, 50Hz
- Power Output: max. 2300W per channel, 2300W overall
- Current Output: max. 10A
- Connections: Fixed Power supply, Safety contact power Out, 3-Pin DMX In/Out
- DMX Channels: three - 1, 4, 6
- Control Channels: one
- Colour: black
- Dimensions(WxDxH): 182 x 92 x 65mm
- Weight: 1.53kg
