Key Features

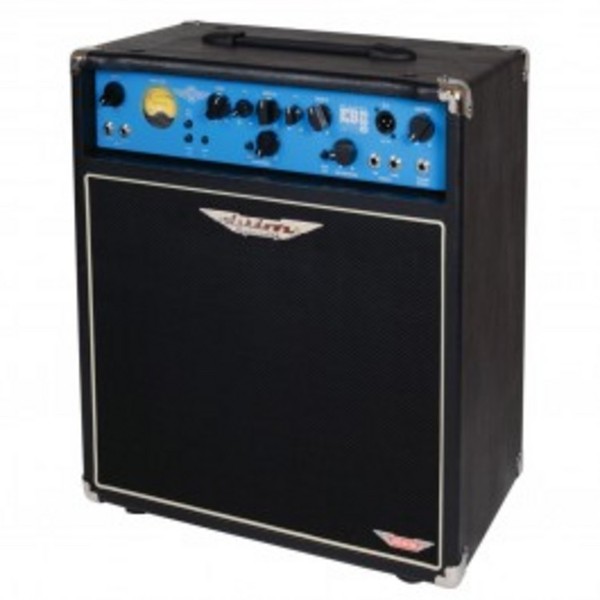

- Ashdown EB Lite 15-220 EVO III Bass Amp Combo
DISC Ashdown EB Lite 15-220 EVO III Bass Amp Combo Overview
Ashdown Electric Blue bass amplification loads legendary Ashdown tone into an affordable new amp head and a pair of high-performance, high-value combos.
Product Ref: 33812
Full Description
View Full DescriptionThe EB LITE 12-220 1 x 15" combo uses a 220 Watts RMS fan-cooled fast-transient power stage, and a fully-featured bass pre amp with inputs for both active and passive instruments, an illumunated VU meter, 5 band EQ with Bright and Deep switches for total tonal control, a front panel-mounted balanced DI output for connection to a PA or recording console, an FX loop, a tuner/line output and the classic Ashdown sub-harmonic generator.
Consistent with its EVO III status, the combo also includes a built-in compressor to provide an exceptional level of sonic control for a bass amp of this size and cost.
Features/Specifications
- Power Output (RMS) 220W
- Power Requirement 230 /115v
- Speaker Configuration 1 x 15" BlueLine speaker
- Frequency Response -3dB at 33Hz and 25KHz
- Speaker Outputs Minimum impedance 4 Ohms
- High Instrument Input Impedance 3.9MOhms / Input range 150mV - 20V p-p
- Low Instrument Input Impedance 10KOhms / Input range 300mV - 40V p-p
- Line Input Impedance 22k Ohms / Input level 0dBu nominal
- DI Output 600 Ohms balanced / Level -20dBu nominal
- Tuner Output Impedance 22k Ohms, level 0dBu nominal
- Signal to noise Better than 80dB (EQ flat)
- EQ Bass +/-15dB @ 100Hz
- Lo Mid +/-15dB @ 220Hz
- Middle +/-15dB @ 660Hz
- Hi Mid +/-15dB @ 1.6kHz
- Treble +/-15dB @ 7kHz shelving
- Deep +8dB @ 50Hz
- Bright +10dB @ 10kHz
- Effects Send Impedance 22k Ohms / Level 0dBu nominal
- Effects Return Impedance 22k Ohms / Level 0dBu nominal
- Distortion Less than 0.5 THD
- H x W x D (mm) 501 x 474 x 300
- Weight (kg) 27
