Full Description

Superior Audio Performance

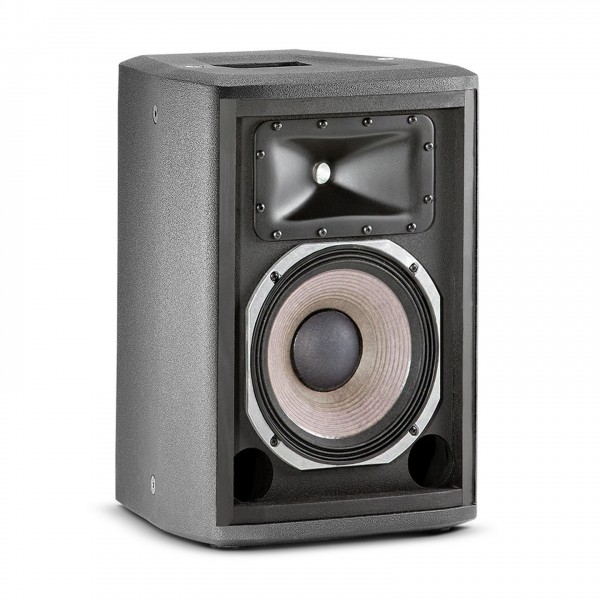

The JBL PRX710 active speaker is equipped with a 10'' Differential Driver low-frequency woofer and a 1.5'' neodymium compression tweeter with annular polymer diaphragm. These drivers are powered by an efficient Class-D amplifier which provides up to 1500 watts (peak). Two user-selectable EQ presets optimise the sonic performance, while a sophisticated DSP provides further optimise the crossover frequency, dynamic limiting and protection.

Innovative Design

Differential Driver technology reduces the overall weight of the driver by integrating the heat sinks within the cast aluminium frames and dual voice coils. This innovative design results in improved heat dissipation, reduced power consumption and an overall higher dynamic range, as well as minimal distortion and incredibly transparent audio reproduction across the entire range.

Tour-Ready Cabinet

The PRX710 cabinet is built from lightweight yet rugged 18mm poplar plywood with tongue and groove joints and 25mm top and bottom panels for additional rigidity. All PRX700 series cabinets have a dent-resistant 16-gauge steel grille and are finished with JBL's tour-proven DuraFlex finish. Multiple M10 suspension points enable you to securely suspensed the speaker for installed applications within performance venues and commercial environments. The glass-filled nylon handles has an injection moulded backing cup and allows you to conveniently carry the speaker.

Features

• 10'' low-frequency woofer
• Neodymium Compression driver with annular polymer diaphragm
• JBL designed waveguide for wide, accurate coverage
• Normal and Boost user selectable EQ presets
• Efficient Class-D amplifier technology
• DSP input section, crossover, dynamic limiting, component optimisation, selectable system EQ
• Integrated 36 mm pole mount socket
• Multiple built-in signal indicators
  • Limit: Yellow LED indicates peak output and DSP limiter is active
  • Signal: Green LED indicates signal present
  • Power/Standby: Blue indicates system has power and is ready
  • Red indicates system has power but is in power saving mode
• Transport carry handle with an injection moulded backing cup
• M10 suspension points
• Lightweight poplar plywood cabinet made with tongue and groove joints
• JBL's tour-proven DuraFlex™ cabinet finish
• Cloth backed, dent-resistant 16 gauge steel grilles

Specifications

• Low-Frequency Driver: 1 x 10'' Woofer (JBL M110-4)
• High-Frequency Driver: 1 x 1.5'' Compression Driver (JBL 2408H-2)
• Frequency Range:
  • Normal: 50Hz - 19.6kHz, -10dB / 63.5Hz - 18.5kHz, -3dB
  • Boost: 42.9Hz - 20kHz / 53Hz - 18.6kHz, -3dB
• Amplifier Type: Class-D
• Amplifier Power: 1500W, Peak
• Crossover Frequency: 1.9kHz
• Sound Pressure Level: 133dB (Maximum)

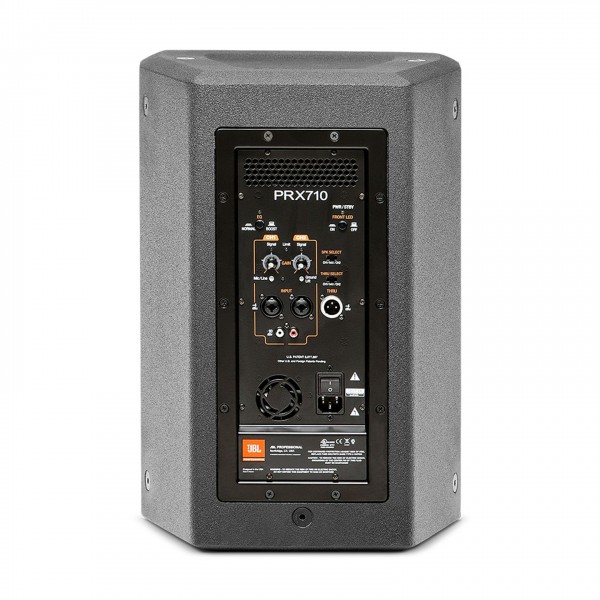

• Input Connectors:
  • 2 x XLR/TRS Combo, Balanced
  • 2 x RCA, Unbalanced
• Output connectors: 1 x XLR, Balanced
• Coverage Pattern: 100° x 60°
• Dynamic Control: dbx Type IV™ Limiter Circuit
• Input Impedance: 20k Ohms Balanced / 10k Ohms Unbalanced
• Signal Indicators:
  • Yellow LED
  • Green LED
  • Blue LED
  • Red LED
• Power Supply: 100V - 240V, 50Hz/60Hz
• Mounting: 36mm Pole Socket
• Suspension: 8 x M10 & 1 x M10
• Enclosure: 18mm Plywood, Trapezoidal
• Enclosure Finish: Obsidian DuraFlex™
• Dimensions: 498.7mm x 335.6mm x 322.3mm / 19.63'' x 13.21'' x 12.69'' (H x W x D)
• Weight: 16.4 / 36lb
